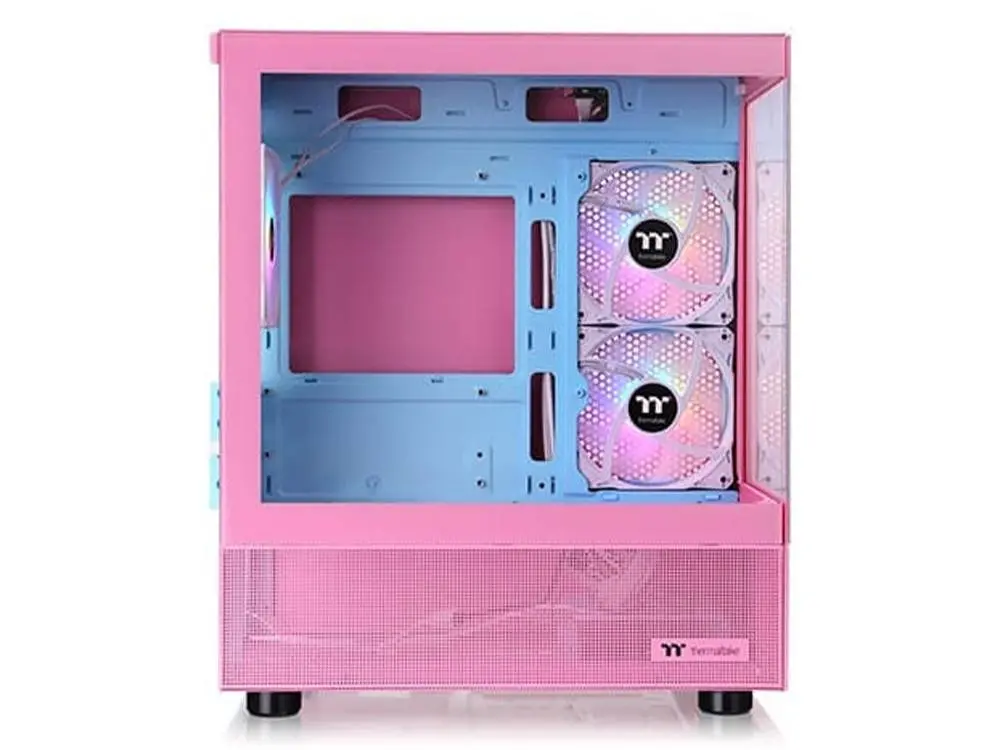

Thermaltake View 170 ARGB Tempered Glass Micro-ATX Case – Bubble Pink (CA-1Z4-00MAWN-00)

Series

View

Case Type

Micro Case

Dimensions

438 x 212 x 377.5 mm

(17.24 x 8.35 x 14.86 inch)

Weight

6.35 kg / 14 lbs.

Side Panel

3mm Tempered Glass x 2

Color

Pink

Material

SPCC

Cooling System

Right(intake):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2

Rear(exhaust):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

Drive Bays

1 x 3.5”, 2 x 2.5”

Expansion Slots

4

Motherboard

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)

I/O Port

USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right:

2 x 120mm, 1 x 120mm

Rear: 1 x 120mm

Power Cover:

2 x 120mm, 1 x 120mm

Radiator Support

Top:

1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Rear:

1 x 120mm

Clearance

CPU cooler max height: 160mm

VGA max length: 340mm

PSU max length: 180mm
