Description
– Quick Release & Locking Mechanism: Enables instant V-mount battery mounting and power supply.
– Lightweight Aerospace Aluminum: The foldable design ensures compactness and portability.
– Stainless Steel Gear Lock with Damping: Provides secure locking and safe rotation while allowing unobstructed access to flip screens.
– Modular LCD Protection Bracket: Features tool-free height and width adjustment to effectively protect screens from impacts.
– Cable Management Accessories: Includes cable clips and elastic hook-and-loop strap for organized cable management, reducing the risk of shooting interruptions due to cable snags.

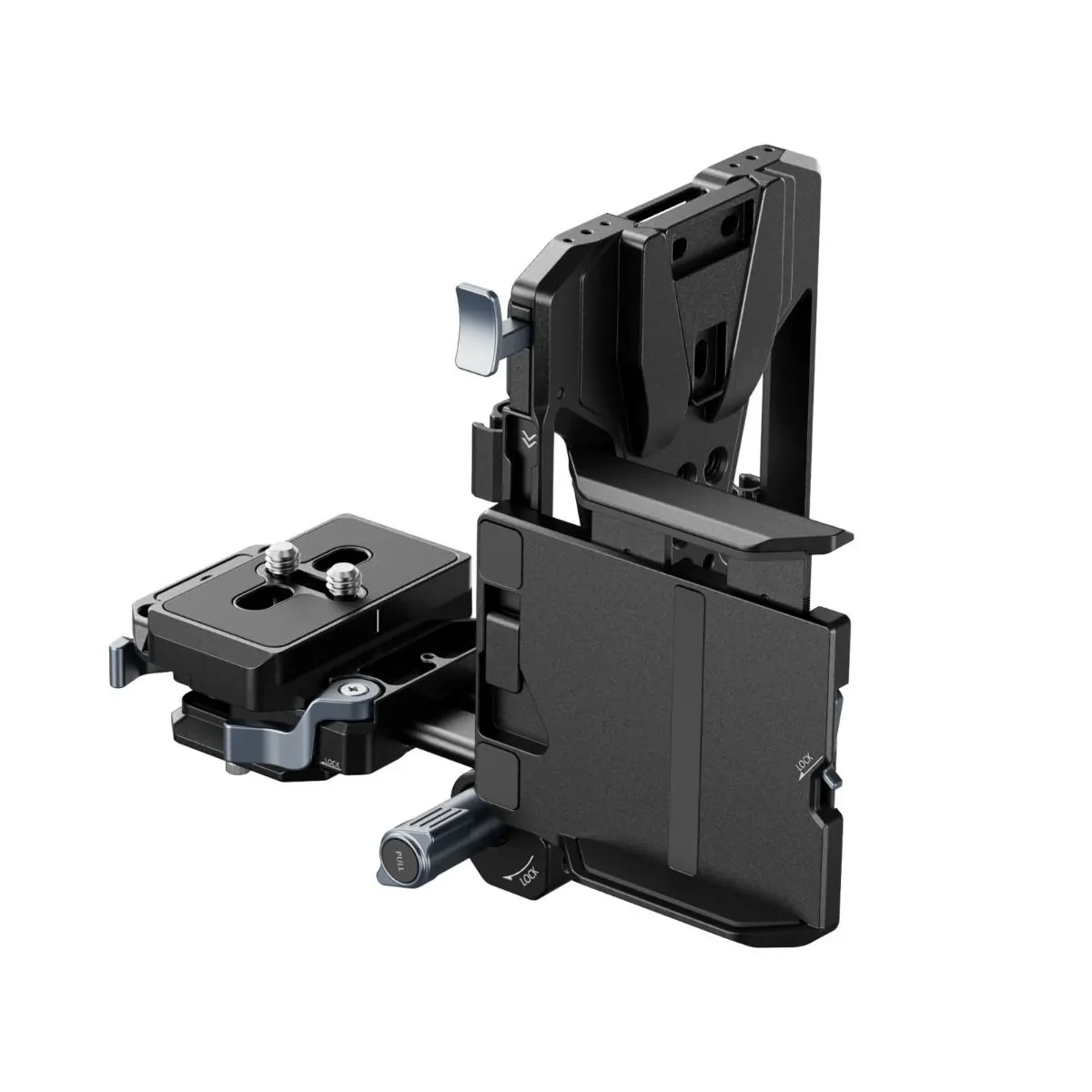

SmallRig V-Mount Battery Mount Plate Kit (Pro) 5315 is a compact, lightweight, and convenient all-in-one V-mount battery expansion solution. The kit includes a V-mount battery plate, an Arca-Swiss quick release plate, and an LCD screen protection bracket.
The battery plate features an Arca-Swiss quick release mechanism, enabling tool-free mounting and adjustment for rapid V-mount battery setup. The Arca-Swiss clamp, equipped with an adjusting lever, is compatible with most Arca-Swiss plates on the market, including cages and L-shaped mount plates, enabling seamless integration. Its retractable design accommodates mirrorless cameras of various sizes.
Constructed from lightweight, durable aerospace aluminum, the V-mount battery plate boasts a foldable design for enhanced portability and easy storage. The swivel control utilizes a stainless steel gear lock for secure operation and shake-free footage, while a damping system prevents accidental drops during adjustments. When rotated to 180°, the plate provides easy access to flip screens. The modular LCD protection bracket features tool-free height and width adjustment, fitting most flip-screen mirrorless cameras while protecting against impacts.
The kit also includes cable clips and an elastic hook-and-loop strap for organized cable management, minimizing the risk of snags during shooting. The V-mount plate offers multiple cable clip mounting holes for customized routing.
Additionally, the detachable Arca-Swiss quick release plate facilitates quick transitions between handheld and tripod modes. Once removed, it reveals 1/4″-20 and 3/8″-16 threaded holes for alternative mounting solutions. The V-mount plate is equipped with multiple 1/4″-20 threaded and 1/4″-20 locating holes, allowing for the attachment of accessories such as magic arms (ID 3238B / 3873) for wireless transmitters and professional setups.
IMPORTANT
1. When using both the included Arca-Swiss plate and LCD screen protection bracket, press the bottom anti-drop pin and slide the plate sideways until the LCD screen fits into the bracket.
2. When using the LCD screen protection bracket, the battery plate can accommodate V-mount batteries up to 80 mm / 3.1″ in width. Compatible SmallRig V-mount batteries: 3579B / 4871 / 4872 / 3580B / 4929 / 4930 / 4292 / 4974 / 4608 / 4984 / 3581B / 4293.
3. Arca-Swiss clamp compatibility: Compatible with most Arca-Swiss plates. Please refer to the accompanying guide or manual for adjustment instructions.
Key Features
Product Dimensions: 147.5 x 129.0 x 100.5mm / 5.8 x 5.1 x 3.9in
Package Dimensions: 162.0 x 122.5 x 69.0mm / 6.4 x 4.8 x 2.7in
Product Weight: 335.0 ± 5.0g / 11.8 ± 0.2oz
Package Weight: 415.0 ± 5.0g / 14.6 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone, PC+Fiberglass
Compatibility
Most flip-screen mirrorless cameras
WHAT IS INCLUDED
1x V-Mount Battery Mount Plate
1x Arca-Swiss Plate
1x LCD Screen Protection Bracket
1x Operating Instruction
1x User Manual
