Description
– Portable, dedicated handheld kit for Panasonic G9 II / S5 II / S5 IIX.
– HawkLock H21 Quick Release NATO clamp top handle.
– Thumbscrew-tightened cable clamp fixes HDMI & USB-C cables at the same time.
– Multiple mounting points support monitor, microphone, LED video light, etc.
– Arca-Swiss quick-release plate for Arca-Swiss tripods and DJI RS 2/ RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro gimbals.
SmallRig Cage Kit for Panasonic G9 II / S5 II / S5 IIX 5752 is designed to assist with handheld shooting and attach accessories. It includes a cage, a HDMI & USB-C cable clamp and a top handle, in which, the top handle, ergonomically designed to enhance grip, connects to the cage via NATO clamp and the thumbscrew-tightened cable clamp can fix HDMI & USB-C cables at the same time. Among the accessory mounting points, 1/4″-20 threaded holes support Side Handle 3323; cold shoe mounts suit SSD Holder 5196, microphone, LED video light, monitor, etc; and ARRI 3/8″-16 locating holes fit Monitor Mount 2903B. It also comes with a HawkLock H21 NATO rail on the left for Side Handle 4485 and strap holes on both sides, which are compatible with hand strap. Besides, a magnetic wrench is included for easy disassembly and assembly.
IMPORTANT
1. Please remove the side lock adapters before installing this cage.
2. The cage is compatible with Panasonic DMW-XLR1 / XLR2, but the top handle in the kit is not. If you need to use Panasonic DMW-XLR1 / XLR2, we recommend using [SmallRig Top Handle for Sony XLR-K1M / K2M / K3M and Panasonic DMW-XLR1 / XLR2 3082]. Please remove the cable clamp on the bottom of the XLR before using the 3082.
Key Features

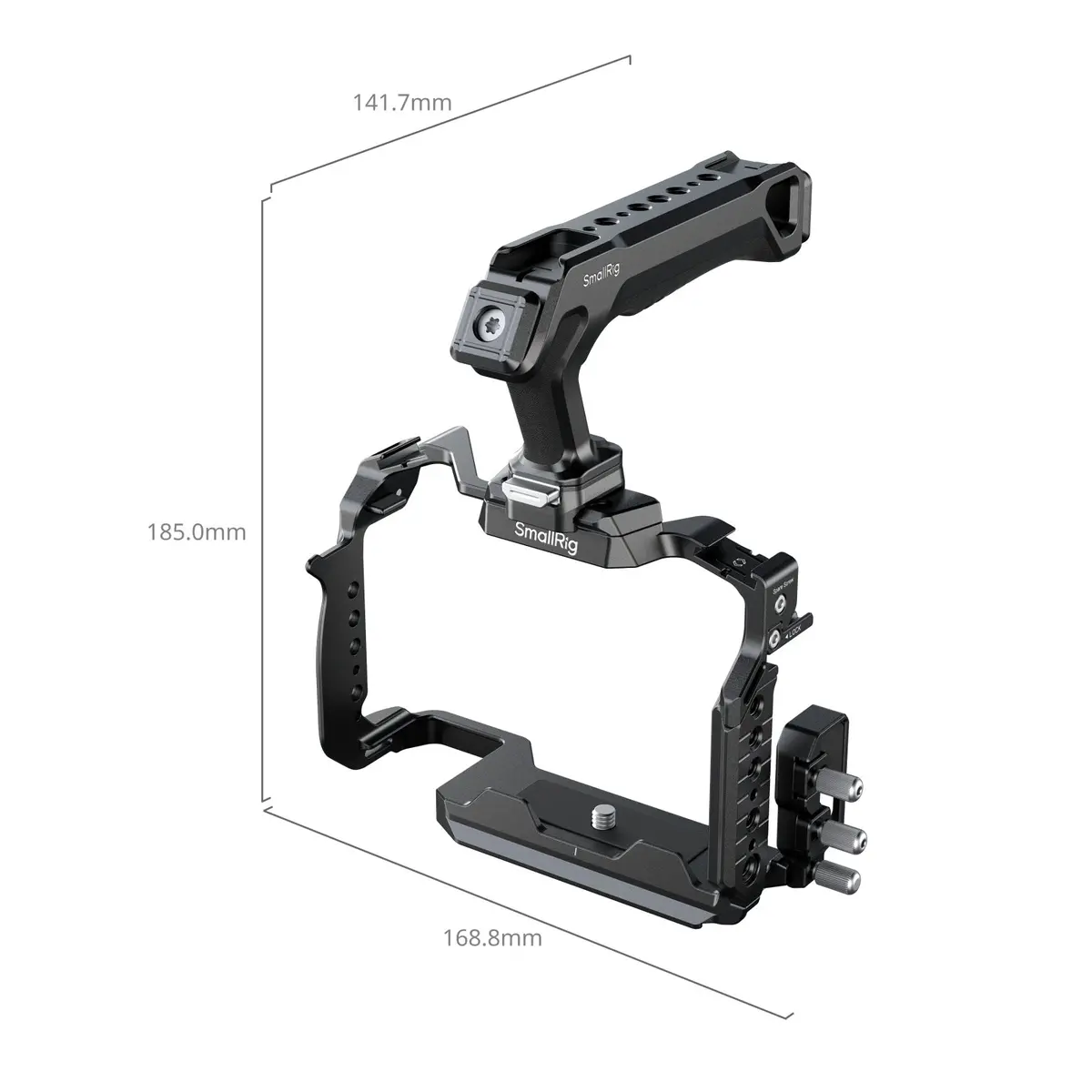

Product Dimensions: 168.8 × 185.0 × 141.8mm / 6.6 × 7.3 × 5.6in
Package Dimensions: 180.0 × 138.0 × 67.0mm / 7.1 × 5.4 × 2.6in
Product Weight: 356.0 ± 5.0g / 12.6 ± 0.2oz
Package Weight: 459.0 ± 5.0g / 16.2 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
Compatibility
Panasonic LUMIX G9 II
Panasonic LUMIX S5 II
Panasonic LUMIX S5 IIX
WHAT IS INCLUDED
1x Cage
1x HDMI&USB-C Cable Clamp
1x Top Handle
1x Operating Instruction
1x Guarantee Card
