Description
Suitable for indoor live broadcasts, creating eye-level, top-down, or Dutch angle photo/video, video conferencing or recording, and more. The C-clamp and articulated arm of the bracket is made of aluminum alloy, which is durable, not easy to rust, and light to carry. The bracket can realize any 360° angle adjustment of the device through a 3-section articulated arm (180° rotation of the sections) and a bottom knob. Both the C-clamp and the articulated arm are detachable, flexible to combine and customize according to your needs, and easy to carry around. The rotating shaft of the articulated arm features a solid gear structure to realize a stable load-bearing capacity of 2.7 kg / 5.9 lbs when tilted and 3.3 kg / 7.3 lbs horizontally. The bracket also comes with an aluminum crab-shaped clamp and holding arm to support an additional device at the same time. The detachable 360-degree ball head on the top of the holding arm makes shooting more efficient. 1/4″-20 screw, phone clip, lamp holder, 1/4″-20 to 3/8″-16 adapter, and 1/4″-20 to 5/8″-11 adapter make it highly compatible with various devices, such as SLR camera, ring light, flat panel light, focus light, microphone, mobile phone, etc.
– Multi-Angle Shooting: Adjustable bracket supports 360° rotation.
– Mobility: The 3-section detachable articulated arm is flexible to combine and easy to customize and carry.
– Load-Bearing Capacity: 2.7KG/5.9lbs tilted and 3.3KG/7.3lbs horizontally.
– The bracket comes with an aluminum alloy crab-shaped clamp and holding arm allowing the connection of an additional device for efficient shooting.
– Highly Compatible: 1/4 “-20 screw, phone clip, lamp holder, 1/4″-20 to 3/8″-16 adapter and 1/4″-20 to 5/8”-11 adapter.
Key Features
Product Dimensions: 1080 x 68x 40mm / 42.5x 2.7 x 1.6in
Product Weight: 930g ± 30g / 33 ± 1.0oz
Material(s): 75% Aluminum Alloy, 21% ABS, 3% Iron and 1% Copper
Maximum Height: 980mm
Articulated Arm Sections: 3
Articulated Arm Section Length: 32cm / 12.6in
Articulated Arm Section Diameter: 25mm / 1.0in
Articulated Arm Head Rotation: 180°
Articulated Arm Load Capacity: 2.7kg – 3.3kg / 5.9 – 7.3lbs
C-Clamp Gripping Distance: < 67mm / < 2.6in
Crab-Shaped Clamp Gripping Distance: 22mm – 28mm / 0.9 – 1.1in
Holding Arm Length: 30cm / 11.8in
Ball Head Diameter: 15mm / 0.6in
Ball Head Load Capacity: < 1kg / < 2.2lbs
Phone Clip Applicable Width: 58-85mm / 2.3 – 3.3in
Compatibility
1/4″-20, 3/8″-16, 5/8″-11

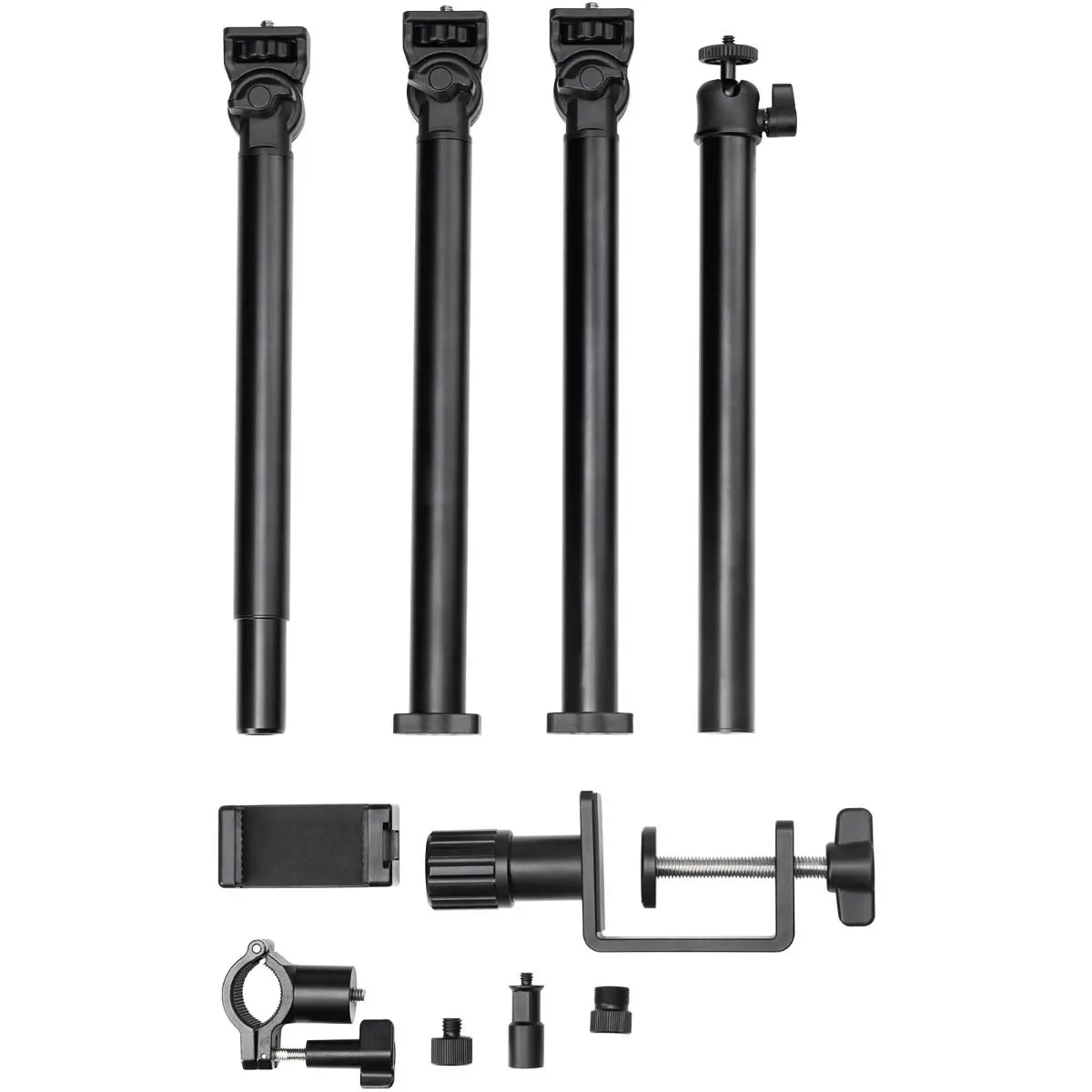

What’s in the box?
1x C-Clamp
3x Articulated Arm
1x Crab-Shaped Clamp
1x Holding Arm
1x Phone Clip
1x Lamp Holder
1x 1/4″-20 to 3/8″-16 Adapter
1x 1/4″-20 to 5/8″-11 Adapter
1x User Manual
