Description
Owners of heritage hifi understand that it’s not about being retro but capturing the essence of an era – the excellence of its music, its art, its design. This excellence is machined into the very fabric of each LEAK piece so that your every play is iconic.

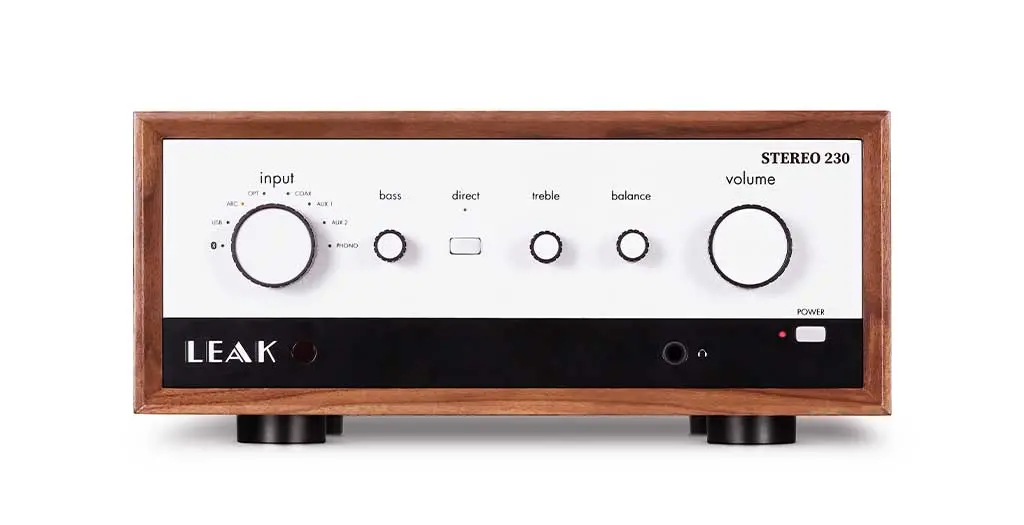

This 75 Watt per channel integrated amplifier is designed for serious music/movie enthusiasts. Inside its classic chassis beats the heart of a modern beast, with HDMI ARC connectivity, 32-bit ESS Sabre Reference DAC, JFET-based (MM) phono preamplifier and HiRes aptX Bluetooth compatibility.
- Technical Specifications
- D/A Converter: ESS Sabre32 Reference ES9038Q2M
- Input Sampling Rates: Optical, Coaxial: 192kHz; PC USB: PCM 768kHz; DSD512
- Rated Output Power: 2 x 75W (8Ω)/2x115W (4Ω)
- Total Harmonic Distortion: < 0.003% (30W, 8Ω)
- Frequency Response: 20Hz-20kHz (+/-0.3dB)
- Input Sensitivity: 550mV (Line, Volume=Max); 4.8mV (phono MM, Volume=Max)
- Input Impedance: 10K (line); 47KΩ //100pF (phono MM)
- Signal to Noise Ratio (S/N): =109dB (A-weighted)
- Pre Output Total Harmonic Distortion (THD): < 0.001%
- Pre Output Signal to Noise (S/N): >110dB (A-weighted); 75db (Phono MM, A-weighted)
- Bluetooth Codec: 5.0 (aptX / aptX LL) streaming
- USB Input: 1 x USB (B-type)
- Digital Audio Inputs: 1 x HDMI ARC, 1 x Coax, 1 x Optical TOSlink, 1 x PC USB
- Outputs: 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
- Analog Inputs: 2 x RCA (AUX1, AUX2), 1 x RCA (phono MM)
- Power Requirement: 220-240V ~ 50/60Hz, 100-120V ~ 50/60Hz
- Dimensions W x H x D (mm): 328 x 147 x 414
- Net Weight: 12.7kg
- Gross Weight: 15.2kg
- Finish: Walnut
Photos and 3d renders are for illustrative purposes only. please see the specs sheet for the contents of this product.
