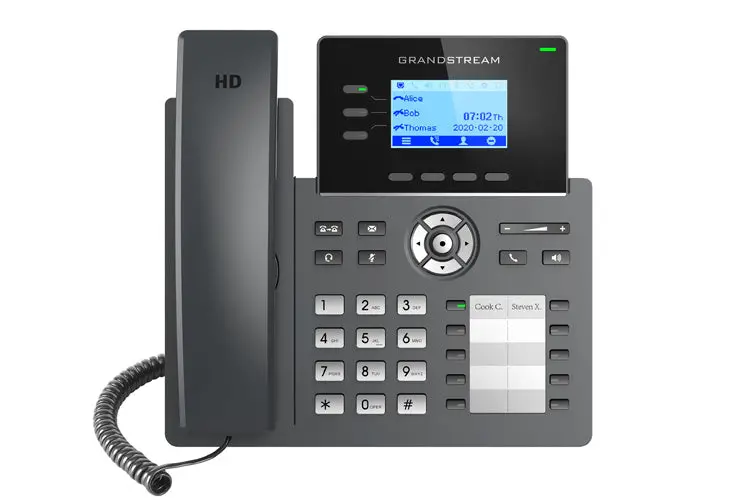

Grandstream GRP2604P PoE IP Phone with 3 SIP Lines

Description

3-Line Essential IP Phone Higher End PoE GRP2604P

Key Features:

• 3 lines
• 6 SIP accounts
• 3 call appearances
• Integrated PoE
• Centralized interface to configure, provision, manage & monitor Grandstream devices
• Electronic Hook Switch support for Plantronics, Jabra, Sennheiser headsets
• Full-duplex speakerphone with HD audio
• Noise shield technology
• Dual switched autosensing 10/100/1000 Mbps Gigabit Ethernet ports
• Supports 5-way audio conferencing
• Enterprise-level protection
• Secure boot
• Dual firmware images
• Encrypted data storage
• Swappable faceplate

Specifications:

• Protocols/Standards – SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6
• Network Interfaces – Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE
• Graphic Display – 132 x 64 (2.7’’) backlit graphical LCD display
• Feature Keys – 3 line keys with dual-color LED and support for 6 SIP accounts, 4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 10 BLF keys, 8 dedicated function keys for: MESSAGE(with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
• Auxiliary Port – RJ9 headset jack (allowing EHS with Plantronics & Jabra &Sennheiser headsets)
• Voice Codecs and Capabilities – Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB
• Telephony Features – Hold, transfer, forward, 5-way conference, call park, call pickup, shared-callappearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over
• HD Audio – Yes, HD handset and speakerphone with support for wideband audio Base Stand Yes, 2 angle positions available (39° & 45°), Wall Mountable (*wall mount sold separately)
• QoS – Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security – User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot
• Multi-language – English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian, and more
• Upgrade/Provisioning – Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
• Power & Green Energy Efficiency – Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
• Temperature and Humidity – Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing
• Package Content – GRP2604 phone, handset with cord, base stand, network cable, Quick Installation Guide, BLF Lables
• Physical – Dimension: 214mm (L) x 206mm (W) x 68mm (H) (with handset) Unit weight: 790g; Package weight: 1100g for GRP2604P & 1150g for GRP2604 GRP2604/GRP2604P
• Compliance – FCC: Part 15 Class B; FCC Part 68 HAC; CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004; IC: ICES-003; CS-03;
