Description

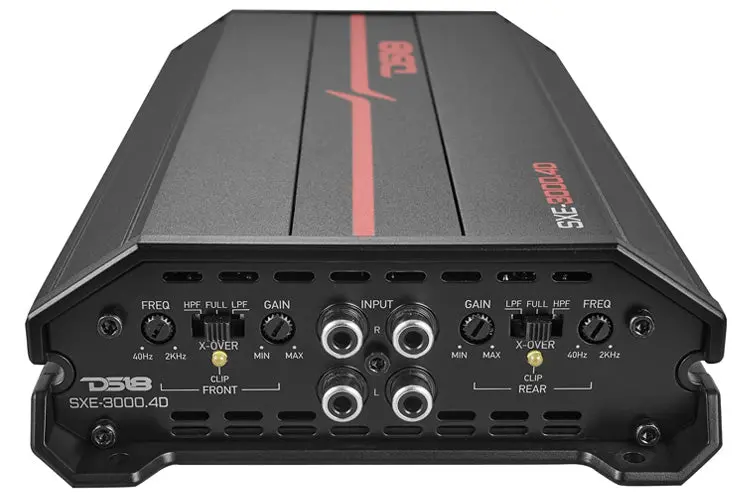

DS18’s SXE Amplifiers are engineered to dramatically enhance the audio quality of any vehicle system. With the SXE-3000.4D in control, your speakers deliver the full depth and detail of your favorite music like never before.
Designed for customization, the SXE-3000.4D features a fully variable crossover, adjustable gain input sensitivity, and a multi-channel layout €”giving you precise control over your sound. Its compact form factor allows for easy installation in virtually any vehicle, making it an ideal choice for tailored, high-performance audio setups.
Key Features:
- Full Range Amplifier
- 4 Channel
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 200 Watts @ 4 Ohm
- Compact Design
Specifications:
- Class: Digital
- Amplifier Type: Stereo Full Range
- Channels: 4 CH
- Peak Power: 3000W
- RMS Power @ 4 Ohm / 14.4V: 4 x 200W
- RMS Power @ 2 Ohm / 14.4V: 4 x 320W
- RMS Power @ 4 Ohm Bridged / 14.4V: 2 x 500W
- Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
- Operation Voltage: 10 – 15V
- Audio Specifications
- Frequency Response: 10Hz – 20KHz
- Signal to Noise Ratio: 90dB
- Low Pass Filter: 40Hz – 400Hz
- High Pass Filter: 40Hz – 400Hz
- Subsonic: No
- Subsonic Frequency: N/A
- Efficiency @ 4 Ohm: 88%
- Damping Factor: 140
- Total Harmonic Distortion (THD): 0.05%
- Input Sensitivity: 0.2V – 6V
- X-Over Filter Range: 40Hz – 2KHz
- Bass Boost Range: No
- Bass Boost Frequency: N/A
- Phase Selector: No
- Features
- High Level Input: No
- Selectable X-Over: HPF / FULL / LPF
- LED Indicator: Power / Protect / Clip
- Voltage Input Protection: Yes (16.5V)
- Clipping Protection: Yes
- Thermal Protection: Yes
- Power Input Size: 4GA
- Fuse Rating: 40A x 2
- Remote Level Control: No
- Body Color / Finish: Black Brushed Aluminum
- Measurements
- Overall Length: 9.8″ / 249.3mm
- Overall Width: 5.5″ / 140mm
- Overall Height: 1.8″ / 48mm
- Heatsink Length: 8.34″ / 212mm
- Gross Single Unit Weight: 1.86KG
