Description

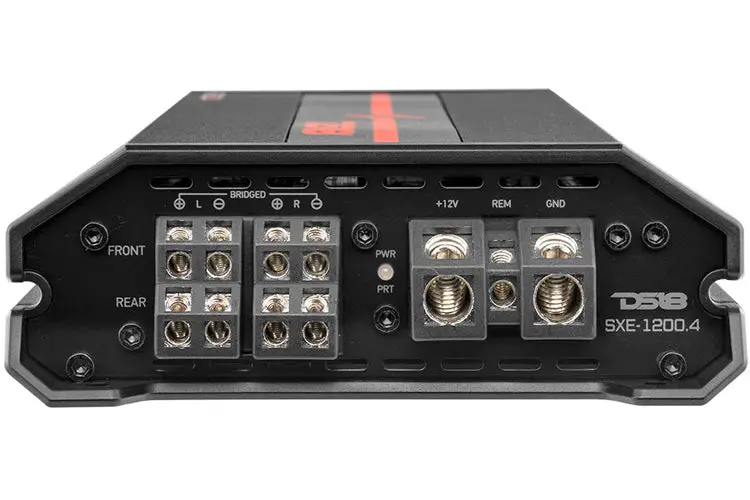

The DS18 SXE Amplifier Series is built for true audio enthusiasts seeking a major upgrade in their vehicle’s sound performance. At the heart of the series, the SXE-1200.4 empowers your speakers to deliver their full potential capturing the finest details of your favorite music with clarity and power.
With features like a fully variable crossover, adjustable input gain sensitivity, and a versatile multi-channel design, the SXE-1200.4 gives you full control over your sound. Fine-tune your system to match your personal preferences and enjoy every beat, note, and lyric with exceptional precision.
Key Features:
- Full Range Amplifier
- 4 Channel
- Class A/B
- 2 ~ 4 Ohm Stable
- 4 x 60 Watts @ 4 Ohm
- Compact Design
Specifications:
- Total Watts (Peak): 1200W
- RMS Power @ 4 Ohm: 4 x 60W
- RMS Power @ 2 Ohm: 4 x 100W
- RMS Power @ 4 Ohm Bridge: 2 x 200W
- AUDIO
- Frequency Response: 10Hz – 20KHz
- Signal to Noise Ratio: 90dB
- Efficiency @ 4 Ohm: 64%
- Damping Factor: 170
- Input Impedance: 20kΩ
- Channel Separation: 45dB
- Total Harmonic Distortion (THD): 0.05%
- Low Level Input Range: 200mV – 5V
- Selectable X-Over: HPF / FULL / LPF
- X-Over Filter Range: 40Hz – 2KHz
- FEATURES
- Amplifier Class: Analog (AB)
- Amplifier Type: Stereo Full Range
- Number of Channels: 4
- Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
- LED Indicator: Power / Protect / Clip
- Power Input Terminal Size: 4Ga
- Fuse Size: 2 x 25A (50A)
- Cooling Fan: Yes
- Thermal Protection: Yes (80 °C)
- Over-Load Protection: Yes
- DC Output Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes (16.5V)
- Clipping Protection: Yes
- MEASUREMENTS
- Overall Length: 9.81″ / 249.3mm
- Overall Width: 5.51″ / 140mm
- Overall Height: 1.88″ / 48mm
- Heatsink Length: 8.34″ / 212mm
- Gross Single Unit Weight: 1.76KG
