Description

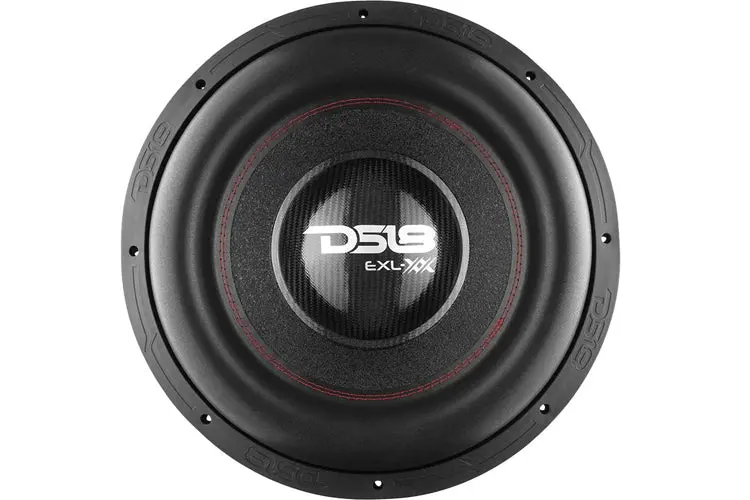

Designed for true car audio enthusiasts, the EXL-XX15.2DHE redefines low-frequency performance with deep, powerful bass that delivers an unforgettable listening experience.
As a top-tier addition to our acclaimed EXL series, it offers exceptional value €”delivering performance that rivals even the most premium high-excursion subwoofers on the market.
Key Features:
- 15″ High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3″ DVC
- Ferrite Magnet
- 88dB
Specifications:
- Nominal Diameter: 15″
- Nominal Impedance: 2+2 ohms
- RMS Power Handling: 2000W
- Maximum Power Handling: 4000W
- Sensitivity (1w/1m): 88dB
- Frequency Response: 20-1.5K Hz
- Recommended Lo Pass Crossover: 80 Hz
- MOTOR
- Voice Coil Diameter: 3″ / 75.6mm
- Voice Coil Former Material: Black Aluminum
- Winding Material: CCAW
- Cone Material: Paper
- Dust Cap Material: Glass Fiber
- Surround Material: Foam
- Basket Material: Aluminum
- Basket Color/Finish: Black
- Magnet Material: Ferrite
- Magnet Weight: 306 OZ
- Displacement Volume: 3.62L
- THIELE & SMALL PARAMETERS
- Equivalent Volume Vas: 31.976L
- Free Air Resonance Fs: 34.9 Hz
- Mechanical Factor Qms: 5.159
- Electrical Factor Qes: 0.584
- Total Factor Qts: 0.525
- Moving Mass Mms: 440.158 g
- Compliance Cms: 0.026 mm/N
- Bl Factor Bl: 18.453
- Voice Coil Inductance Le: 8.562 mH
- Diaphragm Area Sd: 804.25 cm ²
- Dc Resistance Re: 2 + 2 ohms
- Efficiency Bandwidth Product EBP: 59.7
- MEASUREMENTS
- Overall Diameter: 15.59″ / 396mm
- Overall Depth: 10.24″ / 260mm
- Front Mount Baffle Cutout: 13.98″ / 355mm
- Mounting Depth: 8.86″ / 225mm
- Motor Diameter: 8.86″ / 225mm
- Gross Single Unit Weight (lb): 56.5
- Dimensions (W x L x H in Inches): 18 x 18 x 13.5
- Quantity of Units in Master Carton: 1
- Gross Master Carton Weight (lb): 56.5
- M/C Dimensions (W x L x H in Inches): 18 x 18 x 13.5
