Description

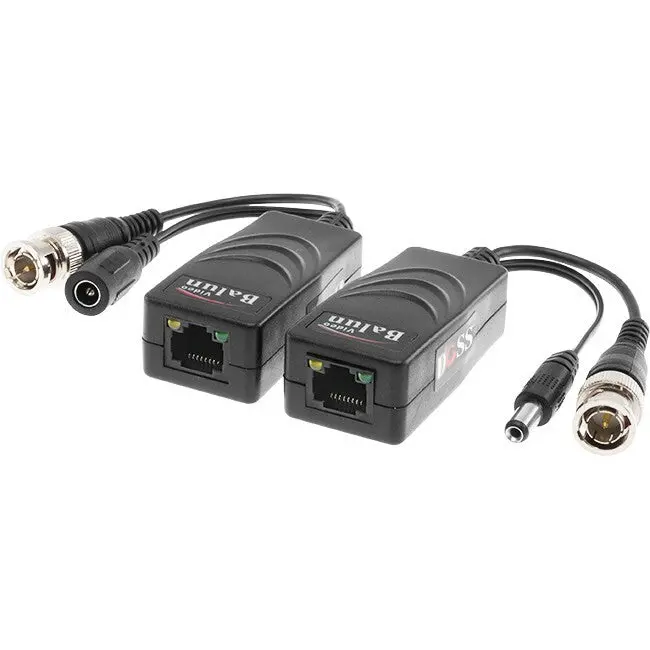

The Doss VPB45PCDHD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective UTP unshielded Twisted Paired cable.
The Doss VPB45PCDHD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminate costly and bulky coaxial cable.
The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the same wire bundle as telephone, datacom or low-voltage power circuits. Also, it has built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
Key Features:
-
Convert 28V-36V DC to regulated 12VDC at camera
-
Color video up to 1312ft(400m) via UTP cat5e/6
-
Compatible with all HD-TVI, HD-CVI, AHD&CVBS analogue cameras
-
RJ45 jack for UTP cable
-
Real-time transmission
-
NTSC,PAL& SECAM video format compatible
-
Exceptional interference rejection
-
Built-in TVS(Transient Voltage Suppressors) for surge protection
-
50dB crosstalk and noise immunity
-
Wave filter design Anti-static design
-
Compact size and easy installation
-
ABS engineering housing
