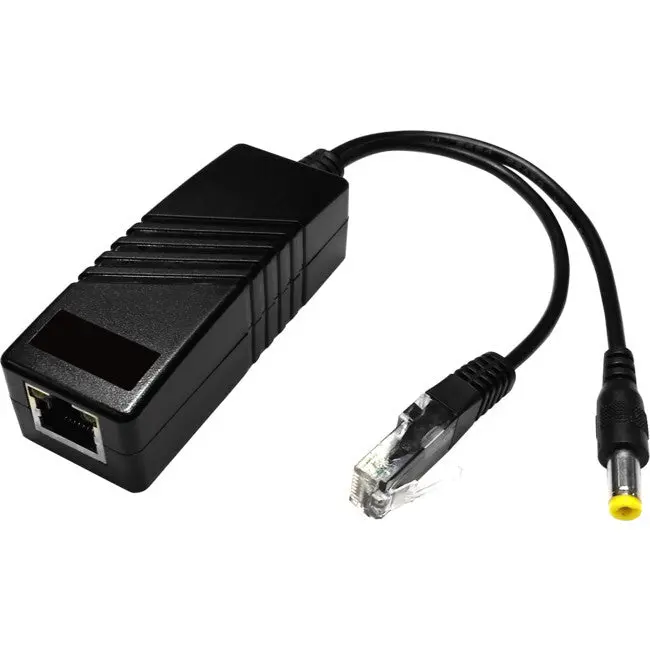

Doss Passive DC12V 1.25A Splitter for Data and Power Distribution

Description

The Doss POE1SP is a POE Splitter which splits 37-57V input from PoE switch into DC 12V and RJ45 data connector. It supplies power and transmits data to devices which do not support PoE power supply (such as IP camera). The product supports IEEE802.3af standard and uses the transformer for isolation design, which gives you a more stable and secure solution for your system.

 Key Features:

• Bandwidth: 10/100Mbps
• Input Voltage: 37-57V
• Input port: Supports Mid-Span (No. 4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections.
• Output Voltage: 12V
• Output current: 1.08A (Max)
• Standard: Supports IEEE802.3af
• Isolation protection: Using the transformer for isolation design, more stable, more secure
• Protection function: Overheating protection, Short circuit protection, overvoltage and overload protection
