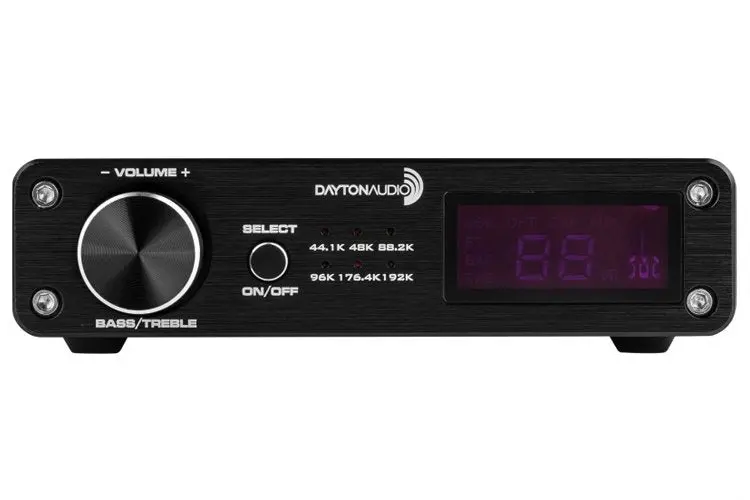

Dayton Audio DTA-Pro: 100W Bluetooth-Enabled Class-D Amp with USB DAC

Description

100W 2 Channel Class-D Wireless Bluetooth Mini Amplifier w/ IR Remote

Key Features:

• Features Bluetooth, USB DAC & wireless IR remote control
• 50 watts maximum power at 4 Ohms per channel
• Several input options including Bluetooth, 3.5mm AUX, Coaxial, Optical & USB
• Wireless remote can control source input, EQ & volume
• High speed 24-bit/192kHz sampling rate

Specifications:

• Power output: 2 x 50 watts @ 4 ohms
• Frequency response: -1.5 dB (20 Hz-20 kHz)
• THD+N: 0.09% at 100mV input
• Dynamic range: 129 dB at 1kHz
• SNR: -107 dB at 1 kHz
• Inputs: USB
• Digital optical
• Digital coaxial
• Stereo 3.5 mm
• Bluetooth
• Sub level: 2.7VRMS maximum
• Sampling bit rate: 192 kHz/24-bit (coaxial and optical)
• 96 kHz/24-bit (USB)
• Electrical requirement: 24V-32V
• Minimum input sensitivity: 1.1V
• Maximum input sensitivity: 2.5V
• Channel separation: -60 dB
• Efficiency: 88%
• Chipset: SA9023+CS8416+TAS5342A+TAS5508C+DAC PCM1808+NE5532
• Dimensions: 1.2″H x 5.2″W x 5″D
