Description

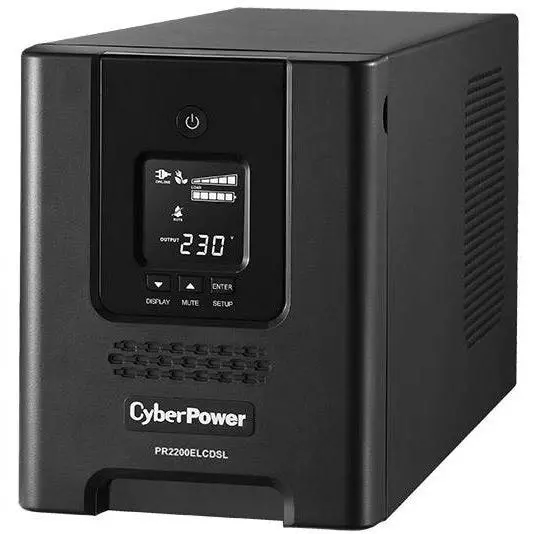

CyberPower PR2200ELCDSL Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It?s typically integrated in the back office, server room, and data center environment.
The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software.
Features:
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- Hot-swappable Batteries
- EMI and RFI Filtration
- USB Connectivity Port
- PowerPanel Management Software
- Tower Form Factor
- Energy Saving Technology
- Pure Sine Wave Output
- Overload Protection
- Surge and Spike Protection
- LCD Status Display
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability
Form Factor: Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Energy Star Qualified: Yes
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 151 – 296
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14 ?
Detachable Power Cord Plug Type: AU x 1 | IEC C14 x 1
Power Cord Length: 3.05m
Output Capacity (VA): 2200
Output Capacity (Watts): 1980
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) – Total: 8
Outlet Type: IEC C13 x 8
Outlet(s) – Battery & Surge Protected: 8
Typical Transfer Time ( ms ): 4
BATTERYRuntime at Half Load ( min ): 12
Runtime at Full Load ( min ): 3
Typical Recharge Time ( Hours ): 8
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Battery Cartridge (RBP): RBP0116
Battery Cartridge (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 405
EMI/RFI Filtration: Yes
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log
LED Indicators: Power On
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs ): Power Cord x5, USB Cable x1, EPO Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes – with optional RMCARD205
Enclosure Construction: Metal
Dimensions: 170 x 221 x 432
Weight: 25.5kg
Online Thermal Dissipation ( BTU/hr ): 155
Certifications: CE | RCM
RoHS: Yes
Product Warranty: 3 Years
Battery Warranty: 2 Years
SKU PR2200ELCDSL
Colour Black
