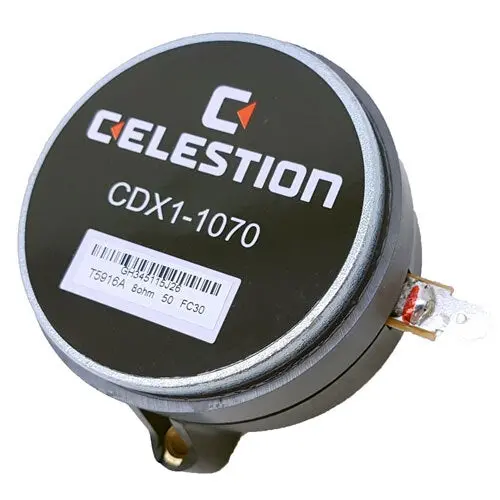

Celestion T5916 1-Inch 12W HF Driver – 8 Ohm Compression Tweeter

Description

Very lightweight, low-profile ferrite magnet compression driver.

12Wrms (AES standard) power handling and 106dB sensitivity, 1500-20,000Hz frequency range.

Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design.

Ideal for entry-level two-way and three-way sound reinforcement cabinets.

Key Features:

• Power rating 12Wrms
• Nominal impedance 😯
• Frequency range 1500-20,000Hz
• Sensitivity 106dB
• Recommended min. crossover (12dB/oct) 2200Hz
• Voice coil diameter 25mm/1.0in
• Voice coil material Copper clad aluminium
• Magnet type Ferrite
• Diaphragm material PETP film
• Surround material PETP film

What’s in the box:

• 1 x Celestion 1″ 12W HF Driver 8 Ohm
