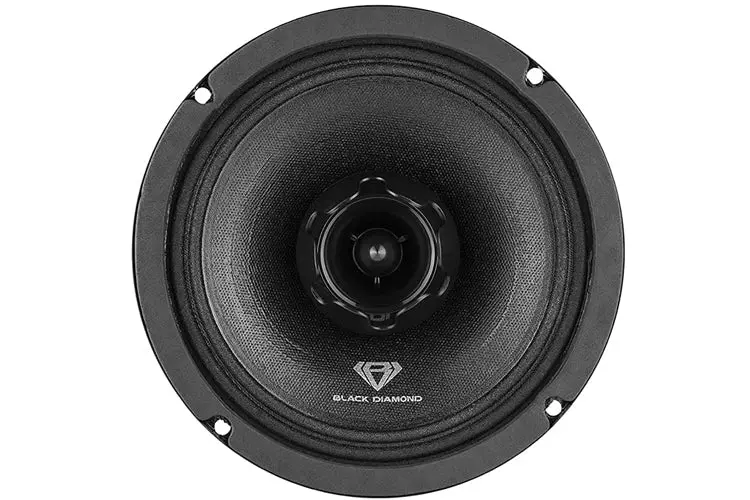

Black Diamond Dia-XT6 6.5-Inch 4-Ohm Midrange Speaker (Single Unit)

Description

Key Features:

• MAX Power Handling: 450W
• RMS Power Handling: 225W
• Nominal Impedance: 4 OHMS
• Sensitivity: 96dB
• Frequency Response: 95Hz – 22KHz

Specifications:

• Woofer Specifications
  • Voice Coil Diameter: 1.5″ / 38.6mm
  • Cone Material: Paper
  • Surround Material: Cloth
  • Basket Material: Steel
  • Magnet Material: Ferrite
  • Magnet Weight: 27 oz
• Tweeter Specifications
  • Voice Coil Diameter: 1″
  • Diaphragm Material: Aluminum Alloy
  • Magnet Material: Neodymium (N38H)
  • Magnet Weight: 0.44 oz
• Measurements
  • Overall Diameter: 6.6″ / 168 mm
  • Overall Depth: 3.62″ / 92 mm
  • Front Mount Baffle Cutout: 5.66″ / 144 mm
  • Mounting Depth: 3.07″ / 78 mm
  • Motor Diameter: 4.6″ / 117mm
