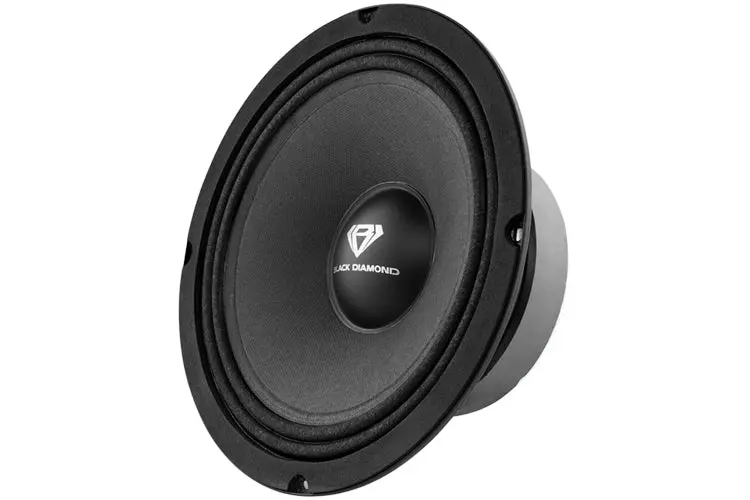

Black Diamond Dia-M8 8-Inch 8-Ohm Midrange Car Speaker – Single Unit

Description

Black Diamond 8″ Mid-range LoudSpeaker With Bullet 8-Ohm 500 Watts DIA-M8

Key Features:

• Nominal Diameter: 8″
• RMS Power Handling: 250W
• MAX Power Handling: 500W
• Nominal Impedance: 8 Ohm
• Sensitivity: (1w/1m): 96 dB
• Frequency Response: 115Hz-6.3KHz
• Recommended Hi Pass Crossover: 120 Hz

• Motor Specifications
  • Voice Coil Diameter: 1.5 / 38.6 mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Cone Material: Non-Pressed Paper
  • Surround Material: Cloth
  • Basket Material: Steel
  • Magnet Material: Ferrite
  • Magnet Weight: 30 oz
  • Displacement Volume: .66L
• Thiele & Small Parameters
  • Equivalent Volume: 2.185L
  • Excursion: 9.3mm
  • Free Air Resonance: 100Hz
  • Mechanical Factor: 13.041
  • Electrical Factor: 0.684
  • Total Factor: 0.65
  • CD Resistance: 5.2 Ohms
• Measurements
  • Overall Diameter: 8.22
  • Overall Depth: 3.38
  • Front Mount Baffle Cutout: 7.16
  • Mounting Depth: 3.11
  • Motor Diameter: 4.72
