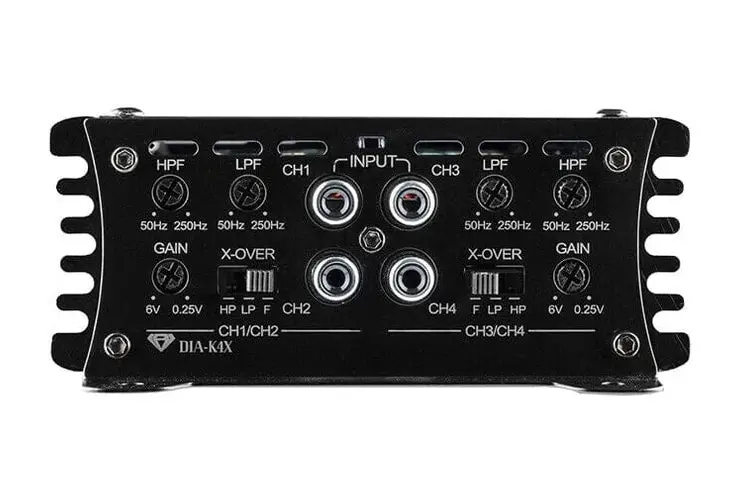

Black Diamond Dia-K4X 4-Channel Class D Amplifier – 3200W Total Output

Description

Key Features:

• Amplifier Class: Digital (D)
• Led Indicator: Power/Protection
• Power Input Terminal Size: 4ga
• Fuse Size: 3x40A
• Remote Level Control: YES
• Thermal Protection: YES
• Over-Load Protection: NO
• DC Output Protection: YES
• Short Circuit Output Protection: YES
• Voltage Input Protection: YES
• 3200W
• 4 Channel Stereo Class-D
• Amplifier 2ohm stable
• Nickel-plated RCA input connectors

3200W peak 4-channel Class D amp with 750W bridged output

• Adjustable Gain, Low-Pass, Hi-Pass and Crossover Switch selector

Specifications:

• Power
  • Total Watts (Peak): 3200W
  • RMS Power @ 4 ohm: 280W x 4
  • RMS Power @ 2 ohm: 400W x 4
  • RMS Power @ 4 ohm Bridge: 750W x 2
• Audio
  • Frequency Response: 20Hz-45KHz
  • Signal to Noise Ratio: >93dB
  • Total Harmonic Distortion (THD): 0.12%
  • Low Level Input Range: 0.25-6V
  • High Level Input: Yes
  • Selectable X-Over: LPF/FLAT/HPF
  • X-Over Filter Range: 35-250Hz
  • Bass Boost Range: 0-12dB
  • Bass Boost Frequency: Fixed @ 45Hz
  • Infrasonic Filter: 10-50Hz
