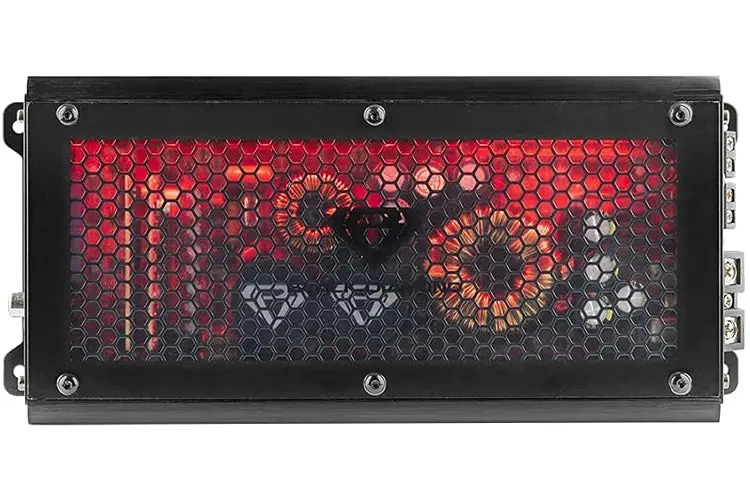

Black Diamond DIA-K1X High-Power Amplifier – 1-Channel Class-D 3000W Monoblock for Subwoofers

Description

Black Diamond Class D 1-Channel Monoblock Amplifier 3000 Watts DIA-K1X

Key Features:

• Amplifier Class: Digital (D)
• Amplifier Type: Monoblock Subwoofer
• Led Indicator: Power/Protection
• Power Input Terminal Size: 4ga
• Fuse Size: 3x40A
• Remote Level Control: Yes
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Outlet Protection: Yes
• Short Circuit Output: Yes
• Voltage Input Protection: Yes

Specifications:

• Black Diamond DIA-K1X Specifications
  • Total Watts (Peak): 3000W
  • RMS Power 4 ohm: 360W x 1
  • RMS Power 2 ohm: 600W x 1
  • RMS Power 1 ohm: 1000W x 1
  • Frequency Response: 10Hz-500Khz
  • Signal to Noise Ratio: >93dB
  • Total Harmonic Distortion (THD): 0.12%
  • Low Level Input Range: 0.25-6V
  • Selectable X-Over: Fixed LPF
  • X-Over Filter Range: 35-250Hz
  • Bass Boost Range: 0-12dB
  • Bass Boost Frequency: Fixed @ 45Hz
  • Infrasonic Filter: 10-50Hz
• Black Diamond DIA-K1X Measurements
  • Overall Length: 9.76″ (248mm)
  • Overall Width: 4.72″ (120mm)
  • Overall Height: 1.96″ (50mm)
  • Heatsink Length: 8.6″ (220mm)
  • Gross Single Unit Weight: 3.37lbs
