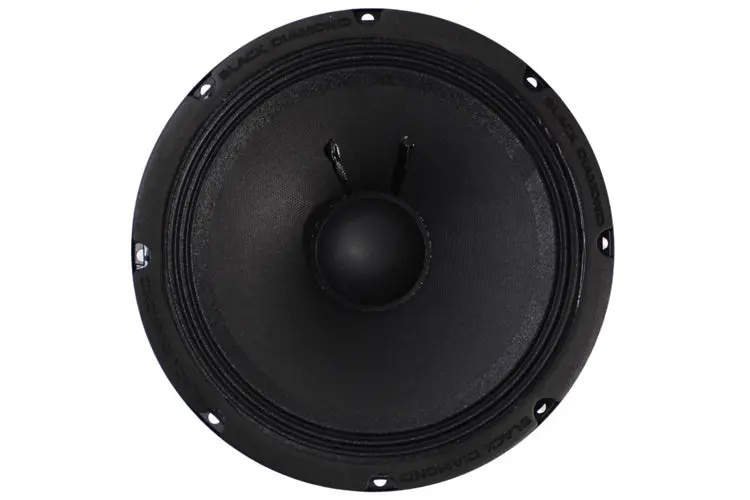

Black Diamond Dia-8MB300-8 8-Inch Mid-Bass Car Speaker – 8-Ohm Single Unit

Description

Key Features:

• Nominal Diameter: 8″
• Nominal Impedance: 8 OHMS
• RMS Power Handling: 150 Watts
• MAX Power Handling: 300W
• Sensitivity: (1w/1m): 97 dB
• Frequency Response: 60Hz-5KHz
• Recommended Hi Pass Crossover: 80 Hz

Specifications:

Motor Specifications

• Voice Coil Diameter: 1.5″ / 38.1 mm
• Voice Coil Former Material: Kapton
• Winding Material: Aluminum
• Cone Material: Paper
• Dust Cap Material: Paper
• Surround Material: Cloth
• Basket Material: Steel
• Magnet Material: Ferrite
• Magnet Weight: 20 oz
• Displacement Volume: 0.61L / 0.0021ft

Thiele & Small Parameters

• Equivalent Volume: 24.6L
• Excursion (one way): 9.8mm
• Free Air Resonance: 70 Hz
• Voice Coil Inductance: 0.19 mH
• DC Resistance: 6.95 ohms

Measurements

• Overall Diameter: 8.07″
• Overall Depth: 3.77″
• Front Mount Baffle Cutout: 7.28″
• Mounting Depth: 3.54″
• Motor Diameter: 4.52″
