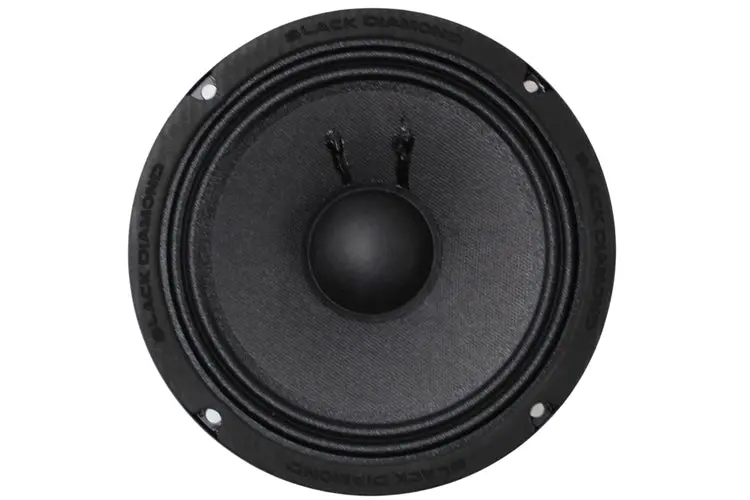

Black Diamond DIA-6MB300-8 6.5-Inch 8-Ohm Car Mid-Bass Speaker (Single Unit)

Description

Black Diamond 6.5″ Mid Bass Loudspeaker 200 Watts Rms 8ohm DIA-6MB300-8

Key Features:

• Nominal Diameter: 6.5″
• Nominal Impedance: 8 OHMS
• RMS Power Handling: 150 Watts
• MAX Power Handling: 300W
• Sensitivity: (1w/1m): 96 dB
• Frequency Response: 80Hz-6KHz
• Recommended Hi Pass Crossover: 100 Hz

• Motor Specifications
  • Voice Coil Diameter: 1.5″ / 38.1 mm
  • Voice Coil Former Material: Kapton
  • Winding Material: Aluminum
  • Cone Material: Paper
  • Dust Cap Material: Paper
  • Surround Material: Cloth
  • Basket Material: Steel
  • Magnet Material: Ferrite
  • Magnet Weight: 20 oz
  • Displacement Volume: 0.45L / 0.0015ft³
• Thiele & Small Parameters
  • Equivalent Volume: 5.74L
  • Excursion (one way): 9.4mm
  • Free Air Resonance: 110 Hz
  • Voice Coil Inductance: 0.19mH
  • DC Resistance: 6.97 ohms
• Measurements
  • Overall Diameter: 6.61″
  • Overall Depth: 3″
  • Front Mount Baffle Cutout: 5.7″
  • Mounting Depth: 2.75″
  • Motor Diameter: 4.52″
