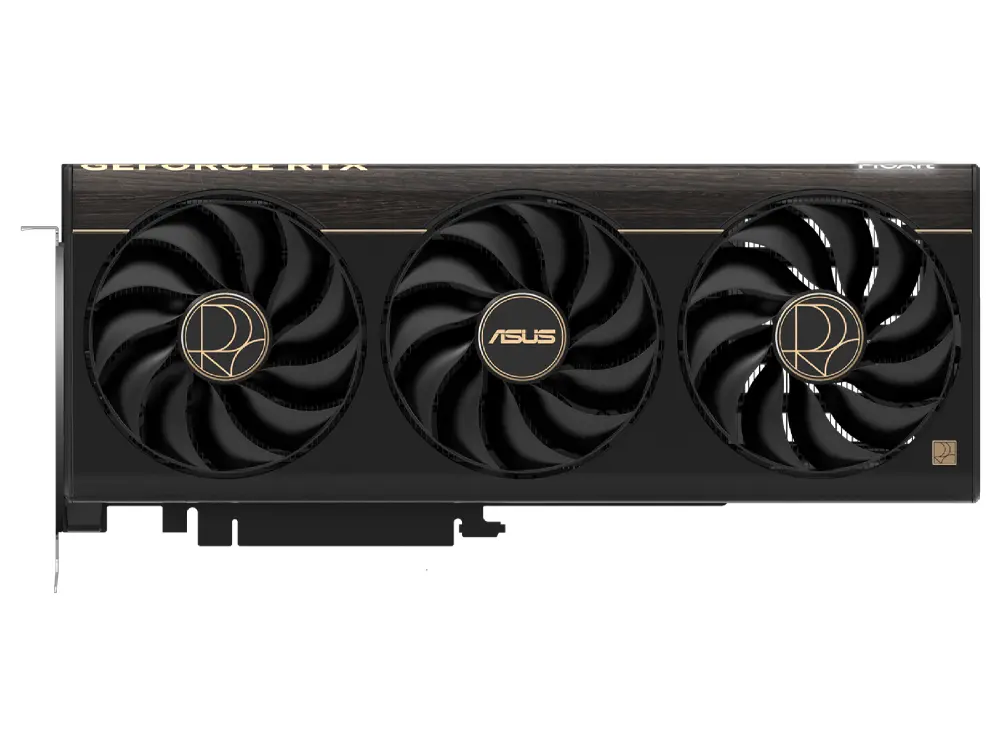

ASUS ProArt GeForce RTX 5080 OC – 16GB Professional Graphics Card

Graphic Engine

NVIDIA ® GeForce RTX „¢ 5080

AI Performance

1858 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL ®4.6

Video Memory

16GB GDDR7

Engine Clock

OC mode: 2730 MHz

Default mode: 2700 MHz (Boost Clock)

CUDA Core

10752

Memory Speed

30 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 2 (Native DisplayPort 2.1b)

Yes x 1 (USB Type-C)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual

1 x Adapter Cable (1 to 3)

1 x ProArt Graphics Card Holder

1 x ASUS Velcro Hook & Loop

1 x Thank you Card

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

304 x 126 x 50 mm

12 x 5 x 2 inch

Recommended PSU

850W

Power Connectors

1 x 16-pin

Slot

2.5 Slot

SFF Ready

Compatible

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the €œChoose By Wattage € feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* Maximum Display Support is specifically applied to simultaneous display situation.
