Description
The AIYIMA A07 MAX is a high-power Class D amplifier featuring the TPA3255 chip, delivering up to 300W x2 in stereo or 600W in mono. With replaceable op-amps, RCA input, AUX output, and a compact aluminum chassis, it’s ideal for audiophiles seeking powerful, customizable performance.
Key Features:
- Texas Instruments TPA3255 Class D amplifier chip for high-fidelity audio performance
- Switchable between stereo (2x300W @ 4Ω) and mono (600W @ 2Ω) modes
- Replaceable op-amp design supporting various chips like OPA2604AP, OPA2134, MUSE01/02/03, LME49720NA, LM4562, AD827AQ

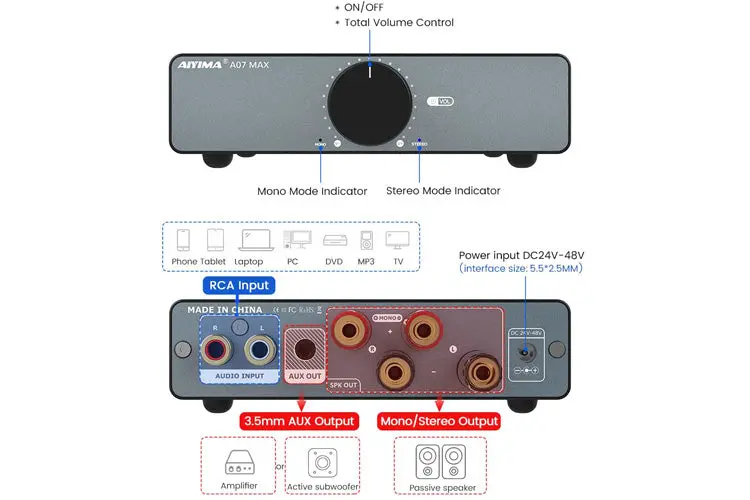

- 3.5mm AUX output for connecting to active subwoofers or additional amplifiers
- Compact and durable aluminum chassis with efficient heat dissipation
- Volume control knob with integrated power switch
- LED indicators for operational status
Specifications:
- Amplifier Type: Class D
- Amplification Chip: Texas Instruments TPA3255
- Op-Amp: NE5532 (DIP8, replaceable)
- Input: 1x Stereo RCA line input
- Outputs: 1x 3.5mm AUX jack output, speaker terminals
- Maximum Output Power (Stereo Mode): 2x300W @ 4Ω (with 48V/12A power supply)
- Maximum Output Power (Mono Mode): 600W @ 2Ω (with 48V/12A power supply)
- Working Voltage: DC 24V-48V, 5A or more
- THD+N: 0.007%
- SNR: 110dB
- Input Sensitivity: 1V
- Frequency Response: 20Hz-20kHz ( ±1dB)
- Maximum AUX Output Level: 1V
- Dimensions (L x W x H): 265mm x 240mm x 65mm
- Net Weight: Approximately 1.27kg
